Name: Existing LOS

Display Field: ROADNAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN><SPAN>Road segments representing centerlines of all roadways or carriageways in the vicinity of Utah County. Typically, this information is compiled from orthoimagery or other aerial photography sources. This representation of the road centerlines support address geocoding and mapping. It also serves as a source for public works and other agencies that are responsible for the active management of the road network. Data schema reflects ESRI's Local Government Data Model with additional fields pertinent for local Utah County processes and applications. </SPAN></SPAN></P><P><SPAN /></P></DIV></DIV></DIV>

Service Item Id: 2fe44da1a6594806a57f546e1e5dd8c0

Copyright Text: The GIS Division of Utah County's Information Systems Department.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Supports Datum Transformation: true

Extent:

XMin: 1467746.2815740854
YMin: 7242668.410743505
XMax: 1518324.3792365938
YMax: 7312898.447776586
Spatial Reference: 102743  (3566)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: ExistingLOS
Field 2: ExistingFunctionalClass
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: A,Highway
  Label: Acceptable (A, B, C)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 168, 0, 255]
  Width: 1
• Value: A,Major Collector
  Label: Acceptable (A, B, C)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 168, 0, 255]
  Width: 1
• Value: A,Minor Arterial
  Label: Acceptable (A, B, C)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 168, 0, 255]
  Width: 1
• Value: A,Minor Collector
  Label: Acceptable (A, B, C)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 168, 0, 255]
  Width: 1
• Value: A,Parkway
  Label: Acceptable (A, B, C)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 168, 0, 255]
  Width: 1
• Value: B,Minor Collector
  Label: Acceptable (A, B, C)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 168, 0, 255]
  Width: 1
• Value: B,Parkway
  Label: Acceptable (A, B, C)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 168, 0, 255]
  Width: 1
• Value: C,Parkway
  Label: Acceptable (A, B, C)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 168, 0, 255]
  Width: 1
• Value: D,Major Collector
  Label: Acceptable (D)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 196, 0, 255]
  Width: 1
• Value: E,Highway
  Label: Unacceptable (E or Worse)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 0, 0, 255]
  Width: 1
• Value: ,
  Label: Local Road
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [204, 204, 204, 255]
  Width: 1
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementAboveAlong
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 10
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• EXRoadTypeID ( type: esriFieldTypeString, alias: Ex Road Type ID, length: 255 )
• ExistingLOS ( type: esriFieldTypeString, alias: Existing LOS, length: 1 )
• ExistingFunctionalClass ( type: esriFieldTypeString, alias: Existing Functional Class, length: 255 )
• ExistingADT ( type: esriFieldTypeInteger, alias: Existing ADT )
• NB2050LOS ( type: esriFieldTypeString, alias: 2050 NB LOS, length: 255 )
• NB2050ADT ( type: esriFieldTypeInteger, alias: 2050 NB ADT )
• FutRoadTypeID ( type: esriFieldTypeString, alias: Fut Road Type ID, length: 255 )
• PROJECT_TYPE ( type: esriFieldTypeString, alias: Project Type, length: 255 )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• ROADNAME ( type: esriFieldTypeString, alias: ROADNAME, length: 50 )
• PROJECT_YEAR ( type: esriFieldTypeSmallInteger, alias: Project Year )
• FuturFunctionalClass ( type: esriFieldTypeString, alias: Future Functional Class, length: 255 )
• LOS2030 ( type: esriFieldTypeString, alias: 2030 LOS, length: 1 )
• ADT2050 ( type: esriFieldTypeInteger, alias: 2050 ADT )
• LOS2050 ( type: esriFieldTypeString, alias: 2050 LOS, length: 1 )
• NB2030ADT ( type: esriFieldTypeInteger, alias: 2030 NB ADT )
• NB2030LOS ( type: esriFieldTypeString, alias: 2030 NB LOS, length: 255 )
• Project_Cost ( type: esriFieldTypeString, alias: Project Cost , length: 255 )
• Alternate_Mode_Trans ( type: esriFieldTypeString, alias: Alternate Modes of Transportation , length: 255 )
• Project_Number ( type: esriFieldTypeInteger, alias: Project Number )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

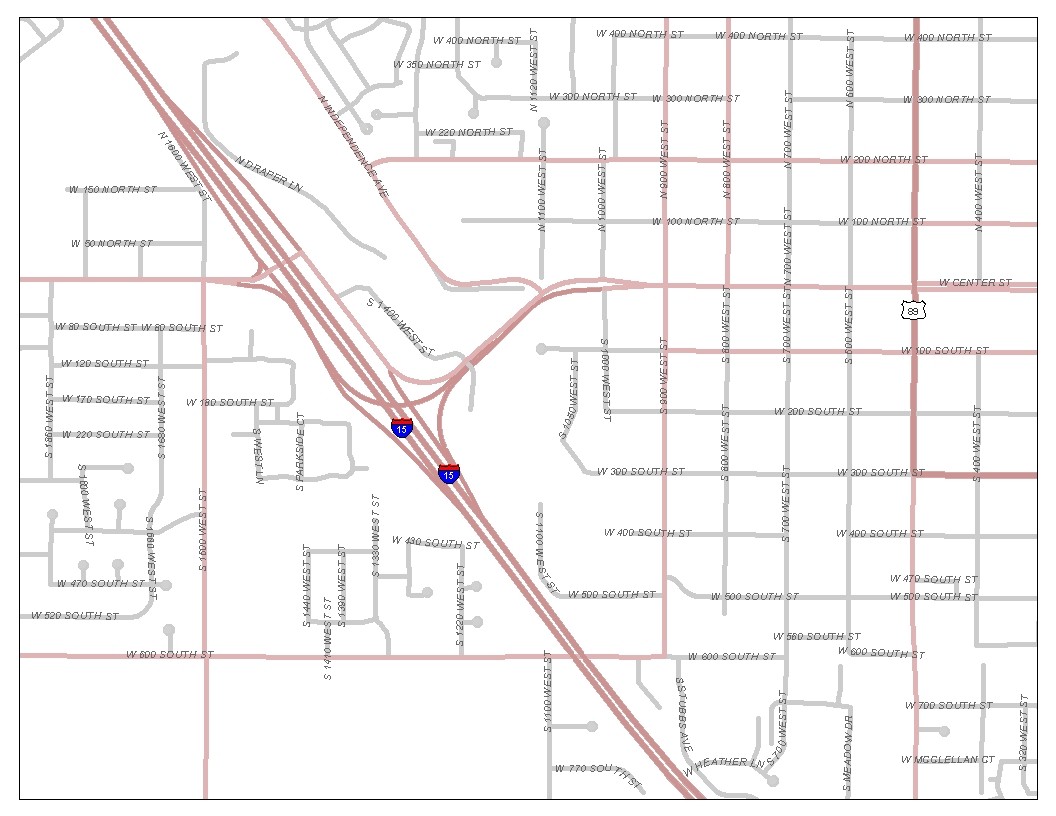

  Iteminfo   Thumbnail   Metadata
