Name: Eagle Mountain Roads

Display Field: ROADNAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN><SPAN>Road segments representing centerlines of all roadways or carriageways in the vicinity of Utah County. Typically, this information is compiled from orthoimagery or other aerial photography sources. This representation of the road centerlines support address geocoding and mapping. It also serves as a source for public works and other agencies that are responsible for the active management of the road network. Data schema reflects ESRI's Local Government Data Model with additional fields pertinent for local Utah County processes and applications. </SPAN></SPAN></P><P><SPAN /></P></DIV></DIV></DIV>

Service Item Id: b7a703faf24f4a4192151554c7b81f0c

Copyright Text: The GIS Division of Utah County's Information Systems Department.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Supports Datum Transformation: true

Extent:

XMin: 1467746.2815740854
YMin: 7243121.415414929
XMax: 1518324.3792365938
YMax: 7312904.069484502
Spatial Reference: 102743  (3566)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: HE_FunctionalClass
Field 2: Future_FunctionalClass
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Major Collector,Freeway
  Label: Future Freeway
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [0, 92, 230, 255]
  Width: 2
• Value: Highway,
  Label: Existing Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [137, 90, 68, 255]
  Width: 1
• Value: Major Arterial,
  Label: Existing Major Arterial
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 0, 0, 255]
  Width: 1
• Value: Major Collector,Major Arterial
  Label: Future Major Arterial
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [255, 0, 0, 255]
  Width: 1
• Value: Minor Arterial,
  Label: Existing Minor Arterial
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 170, 0, 255]
  Width: 1
• Value: Major Collector,Minor Arterial
  Label: Future Minor Arterial
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [255, 170, 0, 255]
  Width: 1
• Value: Major Collector,
  Label: Existing Major Collector
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 168, 0, 255]
  Width: 1
• Value: Major Collector,Major Collector
  Label: Future Major Collector
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [56, 168, 0, 255]
  Width: 1
• Value: Minor Collector,
  Label: Existing Minor Collector
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [102, 205, 171, 255]
  Width: 1
• Value: Major Collector,Minor Collector
  Label: Futur Minor Collector
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [102, 205, 171, 255]
  Width: 1
• Value: Parkway,
  Label: Existing Parkway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [169, 0, 230, 255]
  Width: 1
• Value: Rural Highway,
  Label: Existing Rural Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [245, 162, 122, 255]
  Width: 1
• Value: ,
  Label: Existing Local
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [204, 204, 204, 255]
  Width: 1
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• CENTERLINE ( type: esriFieldTypeString, alias: CENTERLINE, length: 20 )
• FROMLEFT ( type: esriFieldTypeInteger, alias: FROMLEFT )
• TOLEFT ( type: esriFieldTypeInteger, alias: TOLEFT )
• FROMRIGHT ( type: esriFieldTypeInteger, alias: FROMRIGHT )
• TORIGHT ( type: esriFieldTypeInteger, alias: TORIGHT )
• ROADPREDIR ( type: esriFieldTypeString, alias: ROADPREDIR, length: 2 )
• ROADNAME ( type: esriFieldTypeString, alias: ROADNAME, length: 50 )
• ROADTYPE ( type: esriFieldTypeString, alias: ROADTYPE, length: 4 )
• ROADPOSTDI ( type: esriFieldTypeString, alias: ROADPOSTDI, length: 2 )
• FULLNAME ( type: esriFieldTypeString, alias: FULLNAME, length: 125 )
• ALTROADNAM ( type: esriFieldTypeString, alias: ALTROADNAM, length: 30 )
• ALTROADTYP ( type: esriFieldTypeString, alias: ALTROADTYP, length: 4 )
• ALTROADN_1 ( type: esriFieldTypeString, alias: ALTROADN_1, length: 30 )
• ALTROADT_1 ( type: esriFieldTypeString, alias: ALTROADT_1, length: 4 )
• MUNILEFT ( type: esriFieldTypeString, alias: MUNILEFT, length: 30 )
• MUNIRIGHT ( type: esriFieldTypeString, alias: MUNIRIGHT, length: 30 )
• ZIPLEFT ( type: esriFieldTypeString, alias: ZIPLEFT, length: 5 )
• ZIPRIGHT ( type: esriFieldTypeString, alias: ZIPRIGHT, length: 5 )
• FEDROUTE ( type: esriFieldTypeString, alias: FEDROUTE, length: 10 )
• FEDRTETYPE ( type: esriFieldTypeString, alias: FEDRTETYPE, length: 20 )
• AFEDROUTE ( type: esriFieldTypeString, alias: AFEDROUTE, length: 10 )
• AFEDRTETYP ( type: esriFieldTypeString, alias: AFEDRTETYP, length: 20 )
• STROUTE ( type: esriFieldTypeString, alias: STROUTE, length: 10 )
• STRTETYPE ( type: esriFieldTypeString, alias: STRTETYPE, length: 20 )
• ASTRTE ( type: esriFieldTypeString, alias: ASTRTE, length: 10 )
• ASTRTETYPE ( type: esriFieldTypeString, alias: ASTRTETYPE, length: 20 )
• CTYROUTE ( type: esriFieldTypeString, alias: CTYROUTE, length: 10 )
• FAEROUTE ( type: esriFieldTypeString, alias: FAEROUTE, length: 10 )
• PROJECTID ( type: esriFieldTypeInteger, alias: PROJECTID )
• SURFACE ( type: esriFieldTypeString, alias: SURFACE, length: 20 )
• CONDITION ( type: esriFieldTypeString, alias: CONDITION, length: 20 )
• ROW_WIDTH ( type: esriFieldTypeInteger, alias: ROW_WIDTH )
• ROADCLASS ( type: esriFieldTypeString, alias: ROADCLASS, length: 20 )
• RDCLASS_UH ( type: esriFieldTypeString, alias: RDCLASS_UH, length: 5 )
• CFCCCODE ( type: esriFieldTypeString, alias: CFCCCODE, length: 3 )
• OWNEDBY ( type: esriFieldTypeInteger, alias: OWNEDBY )
• MAINTBY ( type: esriFieldTypeInteger, alias: MAINTBY )
• DCLASSID ( type: esriFieldTypeString, alias: DCLASSID, length: 4 )
• RS2477 ( type: esriFieldTypeString, alias: RS2477, length: 3 )
• COUNTYNAME ( type: esriFieldTypeString, alias: COUNTYNAME, length: 20 )
• CULDESAC ( type: esriFieldTypeString, alias: CULDESAC, length: 5 )
• ONEWAYDIR ( type: esriFieldTypeString, alias: ONEWAYDIR, length: 10 )
• ROADLEVEL ( type: esriFieldTypeInteger, alias: ROADLEVEL )
• INWATER ( type: esriFieldTypeString, alias: INWATER, length: 5 )
• SOURCEFEAT ( type: esriFieldTypeString, alias: SOURCEFEAT, length: 20 )
• DATASOURCE ( type: esriFieldTypeString, alias: DATASOURCE, length: 100 )
• LASTUPDATE ( type: esriFieldTypeDate, alias: LASTUPDATE, length: 8 )
• LASTEDITOR ( type: esriFieldTypeString, alias: LASTEDITOR, length: 100 )
• ISVISIBLE ( type: esriFieldTypeString, alias: ISVISIBLE, length: 5 )
• EDITCOMMEN ( type: esriFieldTypeString, alias: EDITCOMMEN, length: 250 )
• CREATED_US ( type: esriFieldTypeString, alias: CREATED_US, length: 254 )
• CREATED_DA ( type: esriFieldTypeDate, alias: CREATED_DA, length: 8 )
• LAST_EDITE ( type: esriFieldTypeString, alias: LAST_EDITE, length: 254 )
• LAST_EDI_1 ( type: esriFieldTypeDate, alias: LAST_EDI_1, length: 8 )
• SHAPE_Leng ( type: esriFieldTypeDouble, alias: SHAPE_Leng )
• GlobalID ( type: esriFieldTypeString, alias: GlobalID, length: 254 )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )
• Future_FunctionalClass ( type: esriFieldTypeString, alias: Future_FunctionalClass, length: 255 )
• HE_FunctionalClass ( type: esriFieldTypeString, alias: HE_FunctionalClass, length: 255 )
• HE_ExADT ( type: esriFieldTypeInteger, alias: HE_ExADT )
• HE_ExLOS ( type: esriFieldTypeString, alias: HE_ExLOS, length: 1 )
• HE_2030ADT ( type: esriFieldTypeInteger, alias: HE_2030ADT )
• HE_2030LOS ( type: esriFieldTypeString, alias: HE_2030LOS, length: 1 )
• HE_2050ADT ( type: esriFieldTypeInteger, alias: HE_2050ADT )
• HE_2050LOS ( type: esriFieldTypeString, alias: HE_2050LOS, length: 1 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

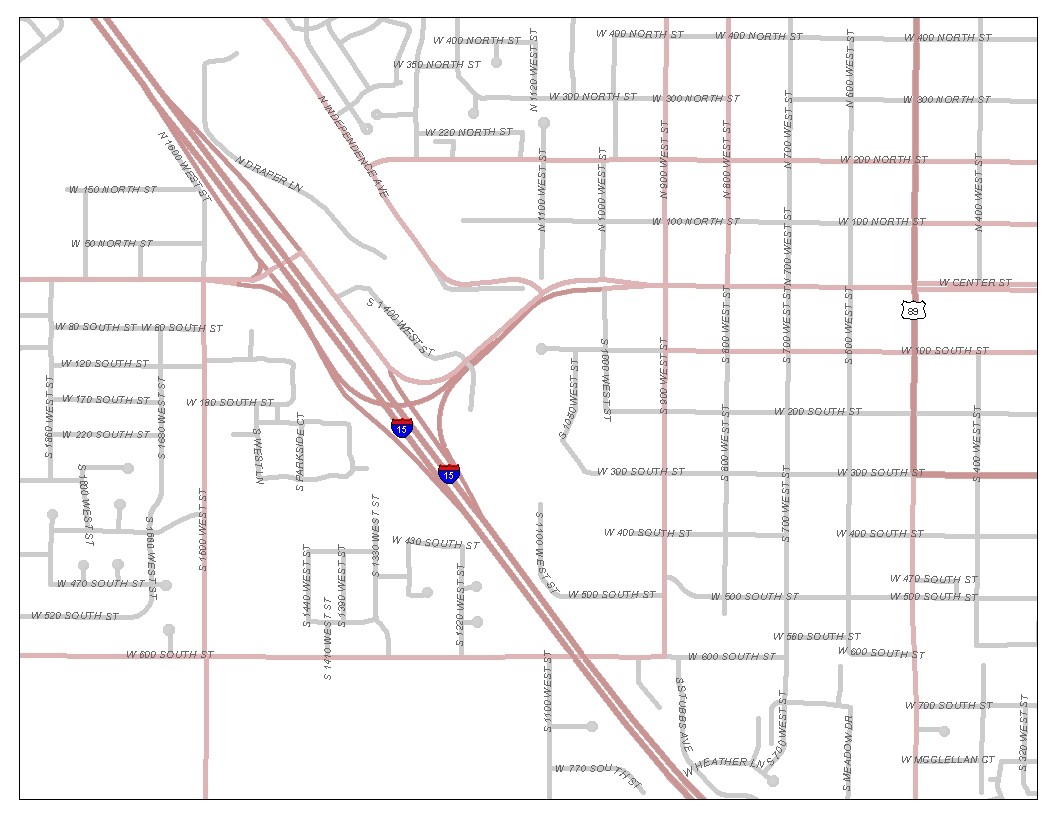

  Iteminfo   Thumbnail   Metadata
